General Information
Note: Also available with Annular Groove (Navy) Pins or Threaded Studs.
Special Orders: Other diameters, lengths, and materials are available by special order (minimum quantities may apply).
Contact: Call Cutlass for part numbers that are not shown.
Printer-Friendly Documents:
Note: Lengths vary by thread size, with materials available in Mild Steel, Stainless Steel, and Aluminum Alloy.
Select the tab below to view detailed information on each specific part, including diameter, length, material, and corresponding part numbers.

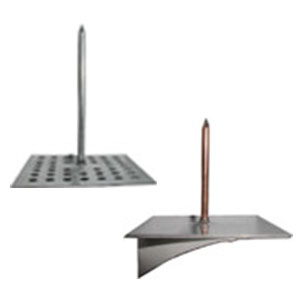

Self-Stick Hangers
| Length | ||
|---|---|---|
| Part NO. | ||
| 3/4" | 6401-1224 | 23 |
| 1.0" | 6401-1232 | 23 |
| 1.1/4" | 6401-1240 | 24 |
| 1.5/8" | 6401-1252 | 24 |
| 2.0" | 6401-1264 | 24 |
| 2.1/2" | 6401-1280 | 25 |
| 3.1/2" | 6401-12112 | 32 |
| 4.1/2" | 6401-12144 | 38 |
| 5.1/2" | 6401-12176 | 40 |
| 6.1/2" | 6401-12208 | 43 |
Material: Pin...mild steel (coppered); Base...mild steel (galvanized)
Pin Diameter: 12GA, 0.105" (2.6mm)
Base Size: 2.0" X 2.0"
Perforated Base Hangers
| Length | ||
|---|---|---|
| Part NO. | ||
| 3/4" | 6501-1224 | 19 |
| 1.0" | 6501-1232 | 19 |
| 1.1/4" | 6501-1240 | 20 |
| 1.5/8" | 6501-1252 | 20 |
| 2.0" | 6501-1264 | 20 |
| 2.1/2" | 6501-1280 | 21 |
| 3.1/2" | 6501-12112 | 28 |
| 4.1/2" | 6501-12144 | 34 |
| 5.1/2" | 6501-12176 | 35 |
| 6.1/2" | 6501-12208 | 38 |
| 8.1/2" | 6501-12272 | 44 |
| 9.1/2" | 6501-12304 | 47 |
| 10.1/2" | 6501-12336 | 50 |
| 11.1/2" | 6501-12368 | 52 |
| 12.1/2" | 6501-12400 | 54 |
Material: Pin...mild steel (coppered); Base...mild steel (galvanized)
Pin Diameter: 12GA, 0.105" (2.6mm)
Base Size: 2.0" X 2.0"
