Insulation Caps

cd-insulation-nail-dome-cap copy

General Information

Special Orders: Caps are available in a brushed aluminum finish or painted white....other colors available upon request. Dome caps available for other pin diameters and additional colors by special order.

Contact: Call Cutlass for part numbers that are not shown.

Printer-Friendly Documents:

Select the tab below to view detailed information on each specific part, including diameter, length, material, and corresponding part numbers.

Inch & Metric

Quick Links

alumcap

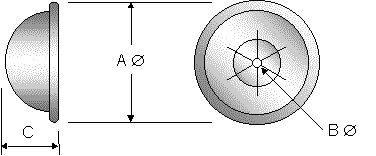

Nail Caps

B Finish
14Ga. (2mm) Brushed Aluminum 2400-1428 7/8" (22mm) 9/32" (7.2mm)
White 2400-1428W
Black 2400-1428B
12Ga.
Brushed Aluminum 2400-1228
White 2400-1228W
Black 2400-1228B
10Ga.
Brushed Aluminum 2400-1028
White 2400-1028W
Black 2400-1028B
3mm
Brushed Aluminum 2400-0328
White 2400-0328W
Black 2400-0328B
navycap

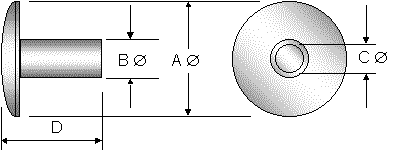

Aluminum Navy Caps

Material Part NO.
Aluminum 2403-9901 15/16" 0.28" 0.175-0.180" 5/8"
