Pinto Charge Battery Powered

The new Pinto Charge system combines portability, lightweight design, and advanced performance. Perfect for job site contractors, it eliminates the need for fixed power sources and delivers reliable results. Available now for immediate delivery, the Pinto Charge is suitable for both new users and those upgrading. Contact Cutlass Fasteners, Inc. for expert advice and support.

Key Features

  • Compact, lightweight, and robust
  • Battery-powered or 110V operation
  • Welds steel, stainless steel, and aluminum studs (6-32 to 3/8")
  • Produces up to 2,800 welds per charge
  • Easy-to-read LCD screen and single-knob operation
  • Integrated cooling fan for reliable performance
Technical Specifications
Details Part Number
Model Pinto Charge
Controller Dimensions 11" H x 8" W x 12" L
Controller Weight 25 lbs (11.3 kg)
Power Supply 120/240 Volt, 50/60 Hz
Battery Lithium (approx. 1,000 charging cycles)
Weld Mode Contact
Charge Range 60 to 200V DC
Stud Capacity Steel/Stainless Steel/Aluminum (6-32 to 3/8")
Weld Rate Up to 20 studs/minute
Cables Weld/Control Cable: 21 ft; Ground Cable: 16 ft
Gun & Cable Weight 14 lbs (6 kg)
Shipping Weight 48 lbs (20 kg)

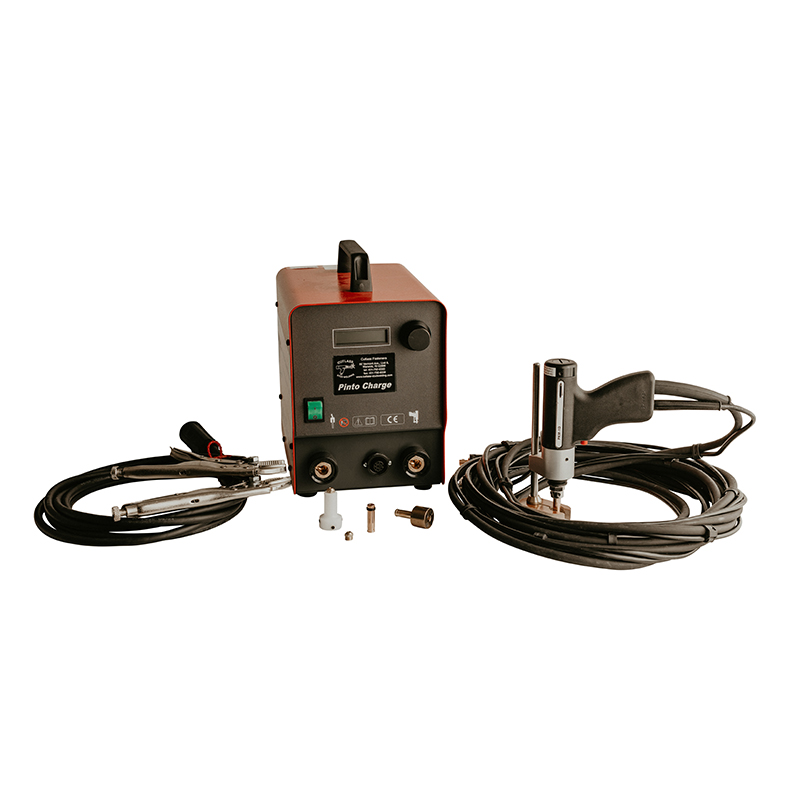

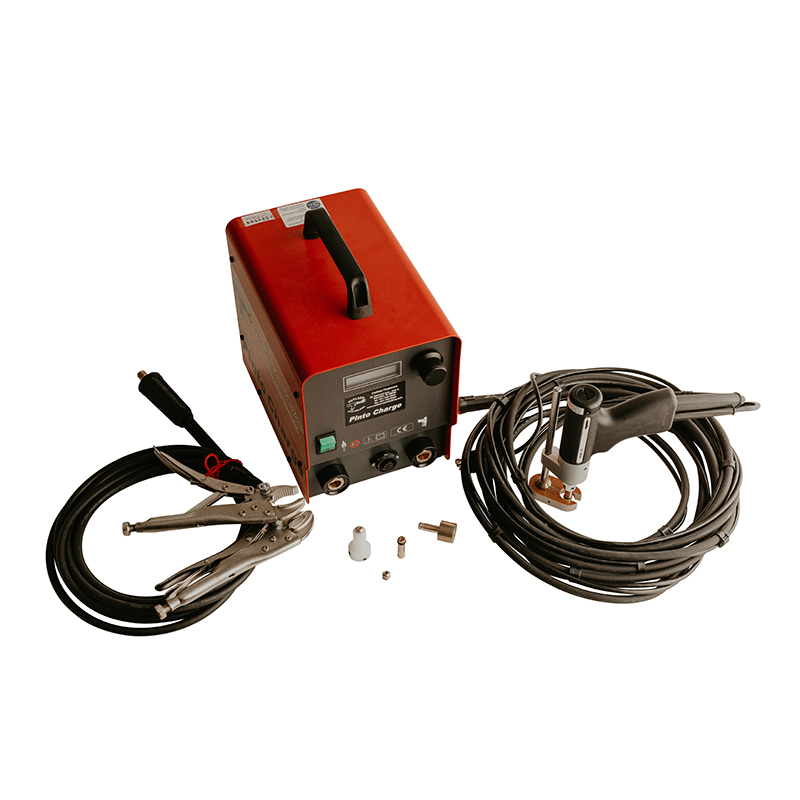

Included Components

Included Components

  • Pinto Charge Controller
  • PKM-1B Weld Gun and Cable Set
  • Ground Clamps with Twin Grips
  • Weld Chucks or Collets for two stud sizes
  • Single Leg Foot Piece
  • Charging Cord
  • Allen Keys
  • Operation, Parts, and Maintenance Manual
