Pinto

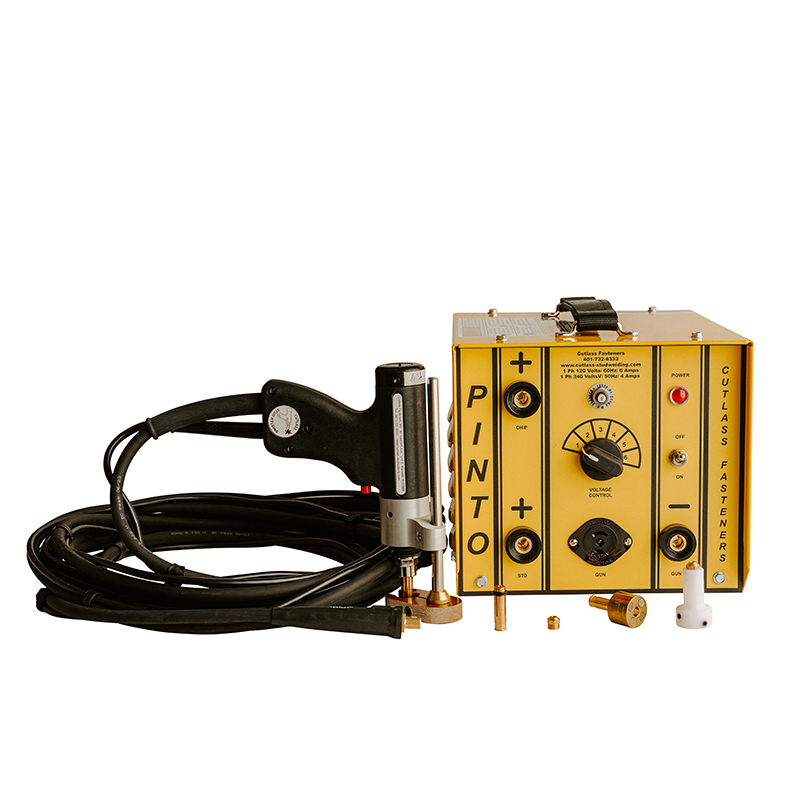

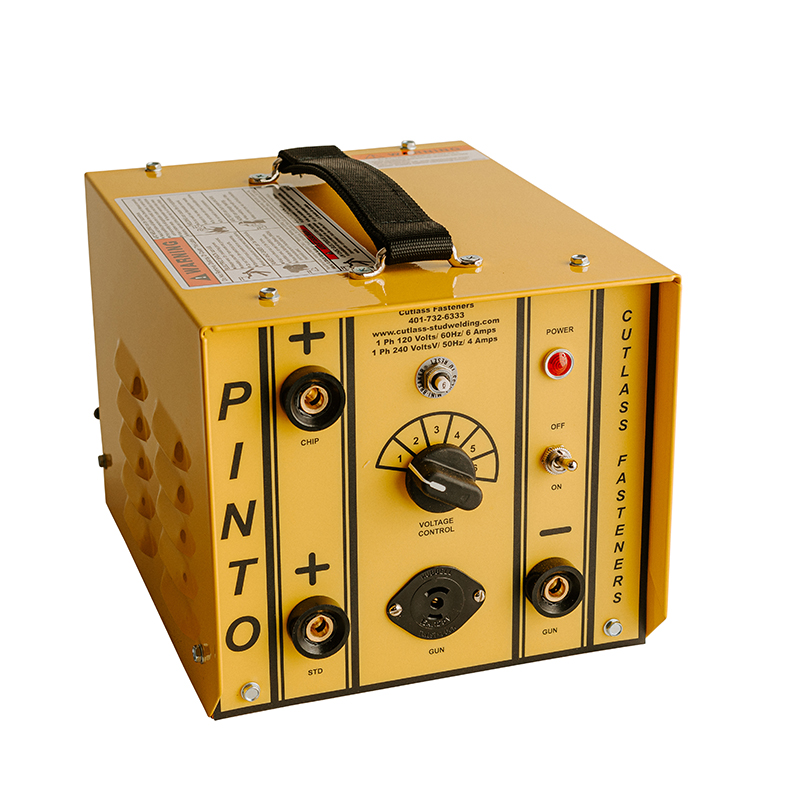

The Cutlass Pinto Cup Head Pin Welder combines all the basic features of the Cutlass CD stud welding systems with added benefits of increased portability, lightweight construction, and simplified use. This welder is the go-to solution for fast and efficient insulation pin welding on-site.

Key Features

  • Portability: Lightweight design for easy transport and on-site use.
  • Simple Operation: Power/Voltage settings are adjusted via a 1-6 rotary switch on the front panel.
  • Durable Weld Gun: The PKM-1B gun is ergonomically designed for continuous, rigorous use, accepting industry-standard "B" style collets.
Technical Specifications
Part No. CSS-1K CSS-1CPK
Dimensions (WxHxL) 9.5" x 9" x 12" Same
Weight 28 lbs (13 kg) Same
Power Supply 120V/240V, 50/60Hz Same
Fusing 6 Amp Circuit Breaker Same
Stud Capacity 12Ga, 10Ga pins 12Ga, 10Ga, CHIP pins
Weld Rate 12 studs/min Same
Weld Mode Contact Same
Charge Range 80VDC to 200VDC Same
Total System Weight 40 lbs (18 kg)
PKM-1B Contact Weld Gun
Dimensions (WxHxL) 25 ft (8 m)
Ground Cable Length 16 ft (5 m)
Gun and Cable Weight 12 lbs (5 kg)
Documentation and Manuals

Documentation and Manuals

Note:

The PINTO Pin Welders were originally supplied with the BANTAM CD Weld Gun (as shown above). The Bantam weld guns are still available, and Cutlass continues to carry parts and accessories for them.
