Select the tab below to view detailed information on each individual weld head

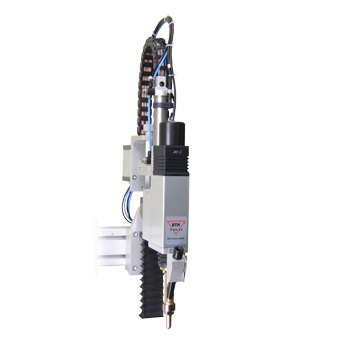

KHA-200F Gap Weld Head
Description
- Precision automatic welding head for capacitor discharge (gap method), short cycle and drawn arc stud welding according to DIN EN ISO 14555
- Welding range: ø 2-12 mm (other ø on inquiry)
- Welding materials: steel (unalloyed and alloyed), aluminum, brass, weldable special alloys
- Suitable for semi-automatic (manual stud feeding) and automatic use (automatic stud feeding by stud feeding system VBZ)
- Individually adaptable for nearly every welding task
- Simple handling
- Highest accuracy in positioning of welding elements
- Short retooling time (chuck and loading tube quickly changeable)
- Highest operational reliability
- Excellent welding quality
- Can be used on CNC stud welding machines, robots, handling systems, stationary machining centers and conventional stud welding units
| Welding Range | ø 2-12mm (other ø on inquiry) |
| Welding Material | Steel (unalloyed and alloyed), aluminum, brass, weldable special alloys |
| Stud Length | 8-40mm (other lengths on inquiry) |
| Welding Method | Capacitor discharge (gap method), short cycle, drawn arc |
| Characterists |
|
| Dimensions (WxHxL) | 50x385x110mm |
| Weight | 4.8lbs (2.2kg) |
| Compressed-Air Supply | 6 bar, 90psi |
| Part Number | B-90-20-4073 |
Documentation and Manuals
KKA-200F Contact Weld Head
Description
- Precision automatic welding head for capacitor discharge stud welding (contact method) according to DIN EN ISO 14555
- Welding range: ø 2-10 mm (other ø on inquiry)
- Welding materials: steel (unalloyed and alloyed), weldable special alloys
- Suitable for semi-automatic (manual stud feeding) and automatic use (automatic stud feeding by stud feeding system VBZ)
- Individually adaptable for nearly every welding task
- Simple handling
- New quick-change system for changing welding heads quickly
- Highest accuracy in positioning of welding elements
- Short retooling time (chuck and loading tube quickly changeable)
- Highest operational reliability
- Excellent welding quality
- Very well suited for welding on problematic surfaces (e.g. zinc, tinder)
- Can be used on CNC stud welding machines, robots, handling systems, stationary machining centers, and conventional stud welding units
| Welding Range | ø 2-10mm (other ø on inquiry) |
| Welding Material | Steel (unalloyed and alloyed), aluminum, brass, weldable special alloys |
| Stud Length | 8-40mm (other lengths on inquiry) |
| Welding Method | Capacitor discharge (contact method) |
| Characterists |
|
| Dimensions (WxHxL) | 50x385x110mm |
| Weight | 4.8lbs (2.2kg) |
| Compressed-Air Supply | 6 bar, 90psi |
| Part Number | B-90-20-4077 |
Documentation and Manuals
KHA-50 Gap Weld Head
Description
- Precision automatic welding head for capacitor discharge (gap method), short cycle and drawn arc stud welding according to DIN EN ISO 14555
- Welding range: ø 2-8 mm (other ø on inquiry)
- Welding materials: steel (unalloyed and alloyed), aluminum, brass, weldable special alloys
- Suitable for semi-automatic (manual stud feeding) and automatic use (automatic stud feeding by stud feeding system VBZ)
- Individually adaptable for nearly every welding task
- Simple handling
- Highest accuracy in positioning of welding elements
- short retooling time (chuck and loading tube quickly changeable)
- Highest operational reliability
- Excellent welding quality
- Can be used on CNC stud welding machines, robots, handling systems, stationary machining centers and conventional stud welding units
- Optional: automatic length compression system (Liftcontrol) for different stud lengths and surface conditions
| Welding Range | ø 2-8mm (other ø on inquiry) |
| Welding Material | Steel (unalloyed and alloyed), aluminum, brass, weldable special alloys |
| Stud Length | 8-30mm (other lengths on inquiry) |
| Welding Method | Capacitor discharge (gap method), short cycle, drawn arc |
| Characterists |
|
| Dimensions (WxHxL) | 80x160x300mm |
| Weight | 4.4lbs (2kg) |
| Compressed-Air Supply | 6 bar, 90psi |
| Part Number | B-90-20-4050 |
Documentation and Manuals
KKA-50 Contact Weld Head
Description
- Automatic welding head for capacitor discharge stud welding (contact method) according to DIN EN ISO 14555
- Welding range: ø 2-8 mm (other ø on inquiry)
- Welding materials: steel (unalloyed and alloyed), weldable special alloys
- Suitable for semi-automatic (manual stud feeding) and automatic use (automatic stud feeding by stud feeding system VBZ)
- Individually adaptable for nearly every welding task
- Simple handling
- Highest accuracy in positioning of welding elements
- Short retooling time (chuck and loading tube quickly changeable)
- Highest operational reliability
- Excellent welding quality
- Very well suited for welding on problematic surfaces (e.g. zinc, tinder)
- Can be used on CNC stud welding machines, robots, handling systems, stationary machining centers, and conventional stud welding units
| Welding Range | ø 2-8mm (other ø on inquiry) |
| Welding Material | Steel (unalloyed and alloyed), weldable special alloys |
| Stud Length | 8-30mm (other lengths on inquiry) |
| Welding Method | Capacitor discharge (contact method) |
| Characterists |
|
| Dimensions (WxHxL) | 80x160x300mm |
| Weight | 4.4lbs (2kg) |
| Compressed-Air Supply | 6 bar, 90psi |
| Part Number | B-90-20-4060 |
Documentation and Manuals
