Our Autofeed Accessories, including collets, stops, and load tubes, deliver a versatile and reliable solution for autofeed systems, offering precision, durability, and compatibility across a wide range of stud diameters and weld head types.

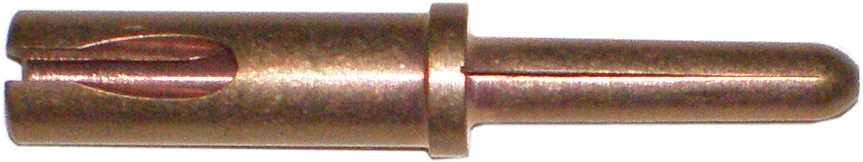

Autofeed Collets
| Stud Diameter | |
|---|---|
| 6-32 UNC, 3mm | 84-52-0003 |
| 8-32 UNC, 4mm | 84-52-0004 |
| 3/16, 5mm | 84-52-0005 |
| 1/4-20 UNC, 6mm | 84-52-0006 |
| 5/16-18 UNC, 8mm | 84-52-0008 |
Autofeed Stops
| Stop Length | ||
|---|---|---|
| Cylindrical Stops | ||
| 10mm | 30mm | 84-70-1030 |
| 15mm | 25mm | 84-70-1025 |
| 20mm | 20mm | 81-40-1020 |
| 25mm | 15mm | 81-40-1015 |
| 26mm | 14mm | 81-40-1014 |
| 28mm | 12mm | 81-40-1012 |
| 30mm | 10mm | 81-40-1010 |
| 31mm | 8mm | 81-40-1008 |
| 33mm | 6mm | 81-40-1006 |
| Conical Stops | ||
| 25mm | 15mm | 81-40-2015 |
| 28mm | 12mm | 81-40-2012 |
| 30mm | 10mm | 81-40-2010 |
| 31mm | 8mm | 81-40-2008 |
| 33mm | 6mm | 81-40-2006 |
Autofeed Gun/Weld Head Load Tube
| Gun/Weld Head Type | ||
|---|---|---|
| Autofeed Load Tube | ||
|
KHA-50 KKA-50 PHA-500 PKA-500 |
6-32 UNC, 3mm | 84-40-1201 |
| 8-32 UNC, 4mm | 84-40-1202 | |
| 3/16, 5mm | 84-40-1203 | |
| 1/4-20 UNC, 6mm | 84-40-1204 | |
| 5/16-18 UNC, 8mm | 84-40-1205 | |
| KHA-200 | 6-32 UNC, 3mm | 84-40-2211 |
| 8-32 UNC, 4mm | 84-40-2212 | |
| 3/16, 5mm | 84-40-2213 | |
| 1/4-20 UNC, 6mm | 84-40-2214 | |
| 5/16-18 UNC, 8mm | 84-40-2215 | |
| MANUAL FEED LOAD TUBE | ||
|
KHA-50 KKA-50 PHA-500 PKA-500 |
6-32 UNC, 3mm | 84-40-1101 |
| 8-32 UNC, 4mm | 84-40-1102 | |
| 3/16, 5mm | 84-40-1103 | |
| 1/4-20 UNC, 6mm | 84-40-1104 | |
| 5/16-18 UNC, 8mm | 84-40-1105 | |
